RL-1283-3.9 Through Hole Inductor For Switching Regulated Power Supply

Ask Lasest Price
Brand Name :	Shareway
Model Number :	RL-1283-3.9
Certification :	CE UL RoHS ISO9001:2008
Price :	Supportive
Payment Terms :	TT,Paypal
Supply Ability :	5000K.PCS/Month
Delivery Time :	Stock or 3 weeks

Add to Cart

Product Details
Company Profile

RL-1283-3.9 Through Hole Inductor For Switching Regulated Power Supply

RL-1283-3.9 Through Hole Inductor For Switching Regulated Power Supply

Product description:

RL-1283 POWER LINE CHOKES,This Series, in four sizes, of Power Line Chokes has 204
standard values to choose from. Inductances range from 1.0μH to 150,000μH. The use of

high saturation material make these coils ideal for use in switching regulated power supply

type applications. The size of the coils make them easy to incorporate in equipment.

Typical Applications:

Switching Regulators
Power Amplifiers
Power Supplies
SCR and Triac Controls
Speaker Crossover Networks
RFI Supression
Filters

RL-1283 Series:

Part No.	Inductance at 0 DC (μH)	Max. DCR (Ohms) @ +20°C	Saturation Current (DC Amps)	Suggested Rated Current (Amps)
RL-1283-3.9	3.9	.007	15.5	4.0
RL-1283-4.7	4.7	.008	13.9	4.0
RL-1283-5.6	5.6	.011	12.6	4.0
RL-1283-6.8	6.8	.011	11.6	4.0
RL-1283-8.2	8.2	.013	9.89	4.0
RL-1283-10	10	.017	8.70	4.0
RL-1283-12	12	.019	8.21	4.0
RL-1283-15	15	.022	7.34	4.0
RL-1283-18	18	.023	6.64	4.0
RL-1283-22	22	.026	6.07	4.0
RL-1283-27	27	.027	5.36	4.0
RL-1283-33	33	.032	4.82	4.0
RL-1283-39	39	.033	4.36	4.0
RL-1283-47	47	.035	3.98	4.0
RL-1283-56	56	.037	3.66	3.2
RL-1283-68	68	.047	3.31	2.5
RL-1283-82	82	.060	3.10	2.0
RL-1283-100	100	.080	2.79	1.6
RL-1283-120	120	.090	2.54	1.6
RL-1283-150	150	.113	2.22	1.6
RL-1283-180	180	.129	1.98	1.6
RL-1283-220	220	.150	1.89	1.6
RL-1283-270	270	.162	1.63	1.6
RL-1283-330	330	.208	1.51	1.6
RL-1283-390	390	.212	1.39	1.6
RL-1283-470	470	.281	1.24	1.2
RL-1283-560	560	.380	1.17	1.0
RL-1283-680	680	.420	1.05	1.0
RL-1283-820	820	.548	.97	0.8
RL-1283-1000	1000	.655	.87	0.8
RL-1283-1200	1200	.844	.79	0.6
RL-1283-1500	1500	1.04	.70	0.6
RL-1283-1800	1800	1.18	.64	0.6
RL-1283-2200	2200	1.56	.58	0.5
RL-1283-2700	2700	2.00	.53	0.4
RL-1283-3300	3300	2.06	.47	0.4
RL-1283-3900	3900	2.53	.43	0.4
RL-1283-4700	4700	2.75	.39	0.4
RL-1283-5600	5600	3.19	.359	0.315
RL-1283-6800	6800	5.92	.322	0.250
RL-1283-8200	8200	5.69	.293	0.250
RL-1283-10000	10000	6.32	.266	0.250
RL-1283-12000	12000	7.30	.241	0.200
RL-1283-15000	15000	9.21	.214	0.200
RL-1283-18000	18000	10.50	.198	0.158
RL-1283-22000	22000	14.80	.180	0.125
RL-1283-27000	27000	21.8	.162	0.125
RL-1283-33000	33000	22.7	.146	0.125
RL-1283-39000	39000	25.7	.135	0.100
RL-1283-47000	47000	31.8	.122	0.100
RL-1283-56000	56000	36.1	.112	0.100
RL-1283-68000	68000	40.9	.101	0.082
RL-1283-82000	82000	57.3	.090	0.065
RL-1283-100000	100000	79.3	.081	0.065

RL-1283-3.9 Through Hole Inductor For Switching Regulated Power Supply

Shape and Dimensions:

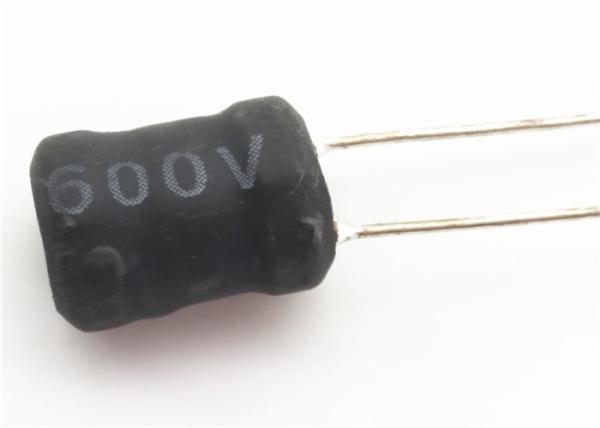

Product Picture:

RL-1283-3.9 Through Hole Inductor For Switching Regulated Power Supply

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
