BGCF00201210670MN2 Common Mode Choke For PDP , LCD TV , PC , Audio
player , DSC
Product Description:
The BGCF series is a type of common mode filter designed and
produced using the multilayer technology. The multilayer
construction allows for excellent noise suppression for signal
lines used in high-speed and high-density digital equipment such as
personal computers, facsimiles, DSC, STB, etc. Both standard series
and custom-design products are available.
Features:
1. Multilayer construction for effective suppression of common mode
noise at high frequency
2. Excellent solderability
3. Compact design
Applications:
1. High speed interfaces (IEEE1394, USB2.0, and LVDS) in electronic
devices
2. PDP, LCD TV, DVD player, PC, Audio player, DSC
3. Digital audio and video equipment such as PDAs, DVC, CD
player,MD player, etc.
Shape and Dimensions:
Packaging Specifications:

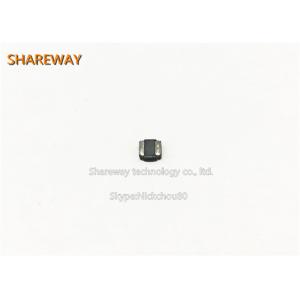

Product Picture:
BGCF00201210670MN2 Common Mode Choke For PDP , LCD TV , PC , Audio
player , DSC
Electrical Characteristics :
| Part Number | Impedance
(Ω) | Tolerance
(±%) | Test
Frequency
(MHz) | RDC
(Ω)Max | Rated Current
(mA)Max | Rated Voltage
(Vdc)Max | Insulation
Resistance
(MΩ) Min |
| BGCF00201210670MN2 | 67 | 20 | 100 | 0.80 | 400 | 30 | 200 |
| BGCF00201210900MN2 | 90 | 20 | 100 | 0.85 | 400 | 30 | 200 |
| BGCF00201210121MN2 | 120 | 20 | 100 | 0.90 | 300 | 30 | 200 |
BGCF00201210670MN2 Common Mode Choke For PDP , LCD TV , PC , Audio
player , DSC
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you
the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International
Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin,
Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
