    168 mg Weight white color A9899-A Wideband RF Transformers for power splitting

    Ask Lasest Price
    Brand Name : Shareway
    Model Number : A9899-A
    Certification : CE UL RoHS ISO9001:2008
    Price : Supportive
    Payment Terms : TT,Paypal
    Supply Ability : 5000K.PCS/Month
    Delivery Time : Stock or 3 weeks
    • Product Details
    • Company Profile

    168 mg Weight white color A9899-A Wideband RF Transformers for power splitting

    168 mg Weight white color A9899-A Wideband RF Transformers for power splitting


    Feature:

    Core material Ferrite
    Terminations Tin-silver-copper over silver-platinum-glass frit
    Weight 168 mg
    Ambient temperature –40°C to +85°C
    Storage temperature Component: –40°C to +85°C.
    Tape and reel packaging: –40°C to +80°C
    Resistance to soldering heat Max three 40 second reflows at
    +260°C, parts cooled to room temperature between cycles
    Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
    85% relative humidity)
    Packaging 1000/13″ reel; Plastic tape: 16 mm wide, 0.34 mm thick,
    12 mm pocket spacing, 4,83 mm pocket depth


    Part

    number

    Impedance

    ratio

    pri:sec

    Frequency

    range

    (MHz)

    Insertion

    loss max

    (dB)

    Pins 1-3Pins 6-4

    L min

    (μH)

    DCR max

    (mOhms)

    L min

    (μH)

    DCR max

    (mOhms)

    A9899-A1:10.26 – 9300.6018.0230.018.0310.0

    168 mg Weight white color A9899-A Wideband RF Transformers for power splitting

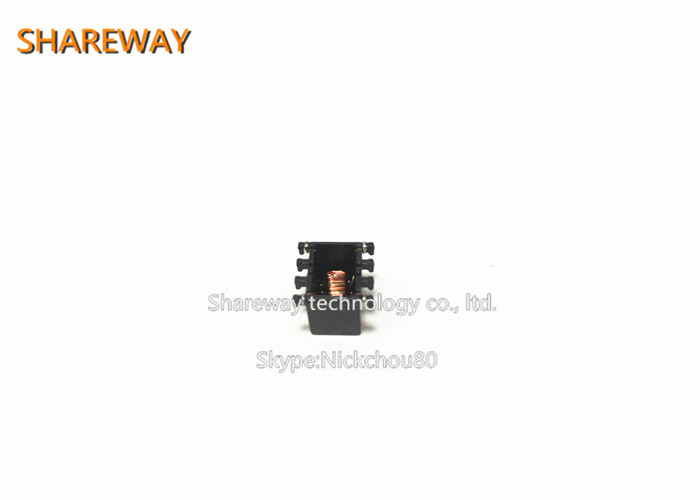

    Product picture:

    Quality 168 mg Weight white color A9899-A Wideband RF Transformers for power splitting for sale
