    NA5814-AL / NA5919-AL SMPS Flyback Transformer For Grid-Connected Solar Microinverter

    Transformer NA5814-AL / NA5919-AL For Grid-Connected Solar Microinverter


    Description:

    • Developed for the Microchip AN1444 Grid-Connected Solar
    Microinverter
    • Designed to operate at 57 kHz with 20 – 55 Vdc input
    • Rectified sine wave output
    • Maximum power: 100 W
    • 3000 Vrms, one minute isolation primary to secondary
    • 1500 Vrms, one minute isolation windings to core


    Core material Ferrite
    Terminations RoHS tin-silver-copper over tin over copper-clad steel.
    Weight 90 g
    Ambient temperature –40°C to +85°C
    Storage temperature Component: –40°C to +85°C.
    Tray packaging: –40°C to +80°C
    Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
    85% relative humidity)


    Part

    number

    L at 0 A

    ±10%

    (μH)

    L at Ipk

    min

    (μH)

    DCR max (Ohms)

    Leakage L

    max (μH)

    Turns ratio

    Ipk

    (A)

    Output
    prisecpri : sec
    NA5814-AL55.044.00.04750.3601.451 : 713.6230
    NA5919-AL55.038.50.04800.1101.581 : 413.6110

    Transformer NA5814-AL / NA5919-AL For Grid-Connected Solar Microinverter


    Shape and Dimensions:

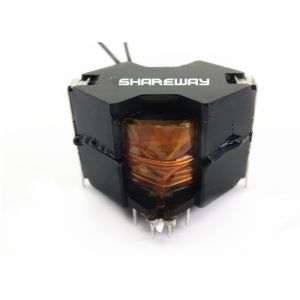

    Product picture:
