DO3308P-472_L_ SMD Power Inductor Handle saturating currents up to 4.2 Amps

SMD Inductor DO3308P-472_L_ Handle saturating currents up to 4.2 Amps

Description:

Handle saturating currents up to 4.2 Amps
Core material Ferrite
Terminations RoHS compliant electroplated gold (<50 μin) over nickel
over phos bronze. Other terminations available at additional cost.
Weight 594 – 640 mg
Ambient temperature –40°C to +85°C with Irms current
Maximum part temperature +125°C (ambient + temp rise)
Storage temperature Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 1000/13″ reel Plastic tape: 24 mm wide, 0.4 mm thick,
12 mm pocket spacing, 3.7 mm pocket depth

Part number	L ±20% (μH)	Percent tol	DCR max (Ohms)	SRF typ (MHz)	Isat (A)	Irms (A)
DO3308P-472_L_	4.7	20,10	0.036	50	4.2	3.2
DO3308P-682_L_	6.8	20,10	0.060	47	3.9	2.6
DO3308P-103_L_	10	20,10	0.085	37	2.7	2.3
DO3308P-153_L_	15	20,10	0.12	35	2.3	1.9
DO3308P-223_L_	22	20,10	0.18	26	1.8	1.5
DO3308P-333_L_	33	20,10	0.25	19	1.6	1.2
DO3308P-473_L_	47	20,10	0.32	14	1.3	1.0
DO3308P-683_L_	68	20,10	0.54	12	1.1	0.9
DO3308P-104_L_	100	20,10	0.69	11	0.87	0.73
DO3308P-154_L_	150	20,10	0.94	9.0	0.74	0.62
DO3308P-224_L_	220	20,10	1.60	6.0	0.56	0.51
DO3308P-334_L_	330	20,10	2.15	5.5	0.50	0.40
DO3308P-474_L_	470	20,10	3.30	4.5	0.40	0.33
DO3308P-684_L_	680	20,10	4.40	3.5	0.33	0.28
DO3308P-105_L_	1000	20,10	7.00	2.5	0.29	0.23

SMD Inductor DO3308P-472_L_ Handle saturating currents up to 4.2 Amps

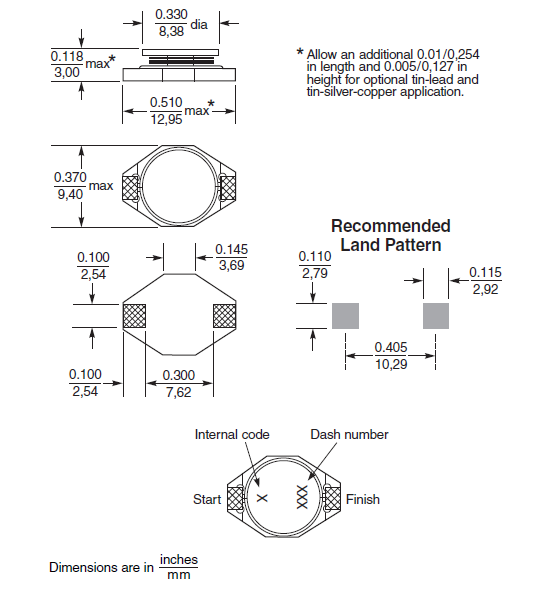

Shape and Dimensions:
