Low Common Mode Ethernet Isolation Module Magntics 10G1SB01 10G BASE -T 4 Core

10G1SB01 10G BASE-T Magntics Modules for isolation and low common mode

Lan Transformer:

Lan transformer range from 10Mbit/s to 10G,it is a SMD communication magnetic transformers

Ethernet transformer modules include a common mode choke for noise attenuation matched to the specified transceiver and are designed for extended temperature range (-40°C to +85°C) applications.

Electrical Specifications @ 25°C

Part Number	10G1SB01
Turns Ratio	1CT:1CT (±5%)
OCL (uH Min) @100KHz/0.1V	100
Cross talk Attenuation (dB Min)	-40 (1-100 MHz)
Cross talk Attenuation (dB Min)	-30 (100-500 MHz)
HI-POT (Vrms)	1500
Insertion Loss (dB Max)	-1.0(1-300 MHz)
Insertion Loss (dB Max)	-1.5(400 MHz)
Insertion Loss (dB Max)	-2.0(500 MHz)
Return Loss　(dB Min)@Load 100Ω	-18　(1-100 MHz)
Return Loss (dB Min)@Load 100Ω	-12　(200-300 MHz)
Return Loss (dB Min)@Load 100Ω	-11　(400 MHz)
Return Loss (dB Min)@Load 100Ω	-10 (500 MHz)
DCMR (dB Min)	-30 (1-250 MHz)
DCMR (dB Min)	-22 (250-500 MHz)

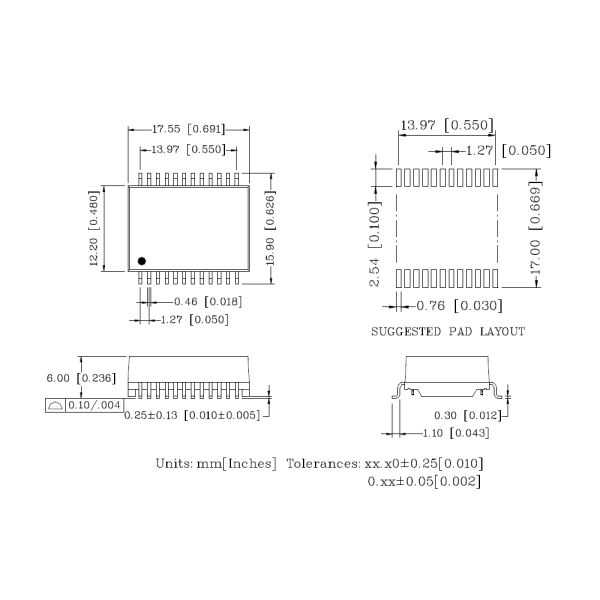

Dimensions:
