EP13 EPC3789G-LF SMPS 25W PoE Transformer Active Clamp Forward With LTC4269-2

Ask Lasest Price
Brand Name :	Shareway
Model Number :	EP13 EPC3789G-LF
Certification :	CE UL RoHS ISO9001:2008
Price :	Supportive
Payment Terms :	TT,Paypal
Supply Ability :	3000K.PCS/Month
Delivery Time :	Stock or 3 weeks

Add to Cart

Product Details
Company Profile

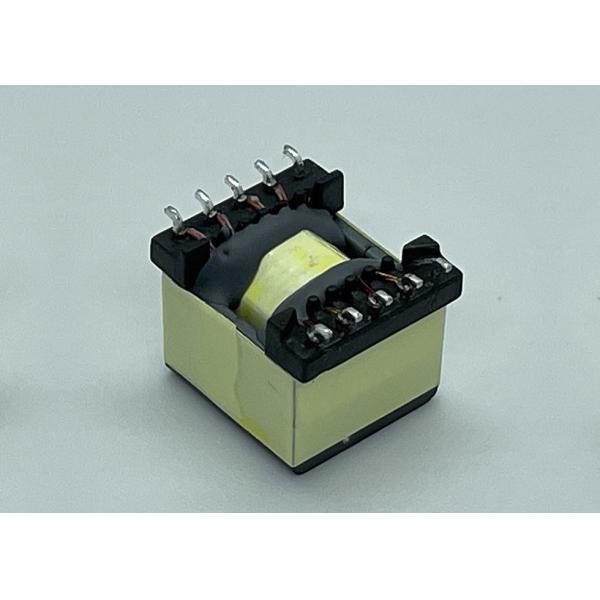

EP13 EPC3789G-LF SMPS 25W PoE Transformer Active Clamp Forward With LTC4269-2

EP13 EPC3789G-LF SMPS 25W PoE Synchronous Forward Transformer

Characteristics:

● 25W PoE Applications
● Switching Frequency: 225kHz
● Duty Cycle: 70% max.
● Class 155°C Insulation System
● Operating Temperature: -40°C to +130°C
● Storage Temperature: -40°C to +130°C

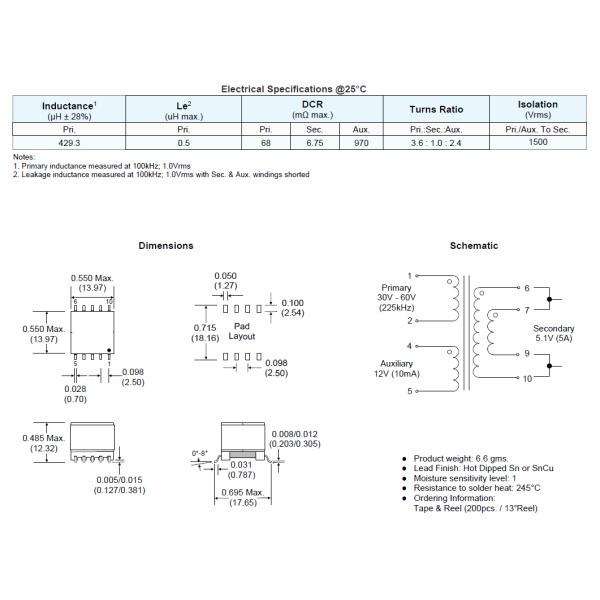

EPC3789G-LF	Forward	EP13	1.000 : 0.667 : 0.278	25.0	429	30 - 60V	12V /0.01A	5.1V / 5A			68.00	970.00	6.75	0.00	0.00	0.50		225	Linear Technology	LTC4269-2

EP13 EPC3789G-LF SMPS 25W PoE Transformer Active Clamp Forward With LTC4269-2

1. Lead Finish: Hot Tin Dip Sn or SnCu
2. Peak Solder Rating: 260°C
3. Weight: TBD grams
4. Packaging Information Tape & Reel : TBD pieces/tray

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
