BU10-1811R2BL UU Type Power Line Common Mode EMI Chokes THT
Characteristics
- Significant noise attenuation over a wide range of frequencies
- Compact size and light weight
- Independent windings allow use in high-voltage signal lines
- 1000 Vrms, one minute isolation (hipot) between windings
- RoHS-compliant. Tin-silver over copper terminations.
Electrical Properties:
Part number | Common mode | Inductance | DCR | Isolation | Irms |
BU10-1811R2BL | 121.5 @ 4300 kHz | 15.0 | 5.0 | 1000 | 0.15 |
BU10-1311R6BL | 59.81 @ 3700 kHz | 7.0 | 2.5 | 1000 | 0.30 |
BU10-1012R2BL | 121.5 @ 4300 kHz | 15.0 | 5.0 | 1000 | 0.15 |
BU10-6003R0BL | 59.81 @ 3700 kHz | 7.0 | 2.5 | 1000 | 0.30 |
BU15-4530R4BL | 123.5 @ 250 kHz | 10.0 | 3.5 | 1000 | 0.25 |
BU15-1430R7BL | 25.12 @ 660 kHz | 2.8 | 1.0 | 1000 | 0.50 |
BU15-7521R0BL | 17.48 @ 980 kHz | 1.3 | 0.5 | 1000 | 0.70 |
BU15-4421R3BL | 5.43 @ 2100 kHz | 0.6 | 0.2 | 1000 | 1.00 |
BU15-2721R6BL | 4.39 @ 2900 kHz | 0.2 | 0.1 | 1000 | 1.60 |
BU16-4530R5BL | 123.5 @ 250 kHz | 10.0 | 3.5 | 1000 | 0.25 |
BU16-2530R7BL | 25.12 @ 660 kHz | 2.8 | 1.0 | 1000 | 0.50 |
BU16-1031R0BL | 17.48 @ 980 kHz | 1.3 | 0.5 | 1000 | 0.70 |
BU16-4021R5BL | 5.43 @ 2100 kHz | 0.6 | 0.2 | 1000 | 1.00 |
BU16-2022R0BL | 4.39 @ 2900 kHz | 0.2 | 0.1 | 1000 | 1.60 |

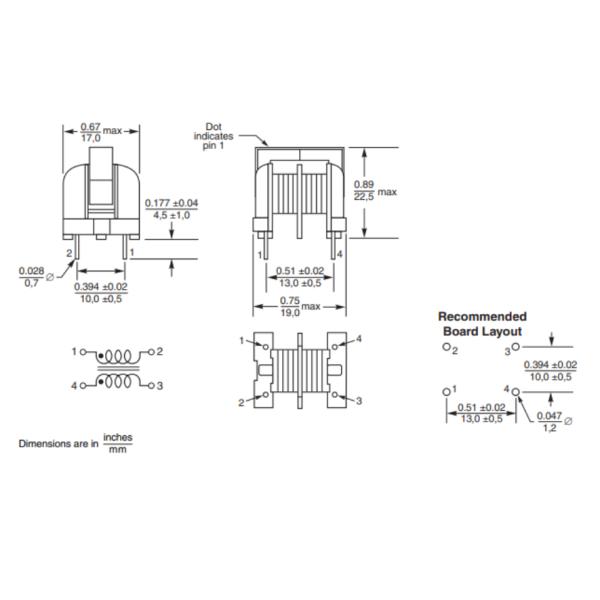

Shape and Dimensions:
Product picture:
BU10-1811R2BL UU Type Power Line Common Mode EMI Chokes THT
