Toroidal T60405-R6166-X206 PFC Boost Inductor Used as (PFC) Boost Inductor with Auxiliary Winding

Characteristics:

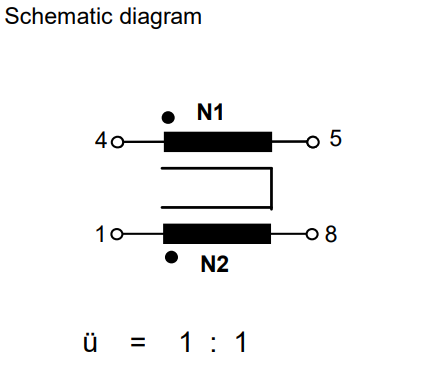

• • Used as (PFC) Boost Inductor with Auxiliary Winding
  • Isolation Between Shield and Winding : 4.5K Vrms
  • All parts have Faraday Shield (except Toroid)
  • Isolation Between Winding : 1500 Vrms
  • UL 94V-0 Recognized Components
  • UL 1446 Class B Insulation System
  * Up to 100% Maximum Duty Cycle
  • Very Large Gap Ferrite

• Tolerance:	3 %
  Maximum DC Current:	6 A
  Self Resonant Frequency:	250 kHz
  Minimum Operating Temperature:	- 40 C
  Maximum Operating Temperature:	+ 130 C

  Core Material:

  Plastic




Notes :

1. Lead Finish: Hot Tin Dip Sn or SnCu
2. Peak Solder Rating: 260°C
3. Weight: TBD grams
4. Packaging Information Tape & Reel : TBD pieces/tray

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
