Shareway Dual Port SMT CMC 4.3k VAC SMT LAN Transformer Cross To HM2121ZNL

Product Categories

SHAREWAY TECHNOLOGY CO., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Shareway Dual Port SMT CMC 43k VAC SMT LAN Transformer Cross To HM2121ZNL
Brand: Shareway
Price: 0.30 USD

Ask Lasest Price
Brand Name :	Shareway
Model Number :	HM2112ZNL
Certification :	RoHs, Reach, UL
Price :	USD$0.30 to USD$0.85
Payment Terms :	T/T
Supply Ability :	1000,000 piece per month
Delivery Time :	onw week for sample, 4 weeks for mass order

Add to Cart

Shareway Dual port SMT CMC 4.3k VAC SMT Lan transformer cross to HM2121ZNL with Competitive price

Electrical Characteristics at +25℃:

Parameter	Specifications
Qualification	Per AEC-Q200
Design Construction	Functional Insulation
Creepage distance	＞ 10mm
Operating Temperature	-40 ℃ to 125℃
Turns ratio	1.00 ± 2%
DC Resistance	Reansformer side: 0.45 Ohms max
DC Resistance	CM Choke side: 0.85 Ohms max
Inductance(OCL) @ 100kHz, 100mV(-40℃ to +125℃)	150uH Min, 450 uH Max
Leakage Inductance	0.50 uH Max, @100kHz
Insertion Loss	0.25 dB Max @ 4 MHz
Return Loss (Z OUT = 100 OHM ±1%)	20 dB MIN @ 4 MHz
Crosstalk, ADJACENT Channels	-50 dB MIN @ 4 MHz
Common mode rejection ratio	1 -10 MHz: -35 dB MIN
Common mode rejection ratio	10-1000 MHz: -20 dB MIN
INPUT - OUTPUT Isolation	4300VDC or 3100 VAC For 60 Seconds with 1.0 mA Max of Leakage current
Insulation resistance	400 Megaohms min
Working voltage	1000 VDC For 15 years

Mechanical Diagram:

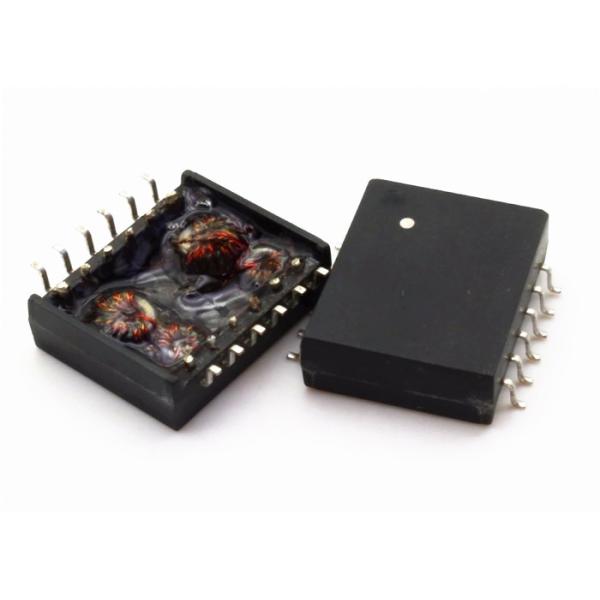

Product Photo:

Shareway Dual Port SMT CMC 4.3k VAC SMT LAN Transformer Cross To HM2121ZNL

How to place the order to us:

1. Please send your demand datasheet to us.

2. We will provide drop in alternative and price for refer.

3. If price ok, then we will send you some free sample for testing.

4. After testing, you can place the mass order and process the payment.

5. The lead time for mass order usually is about 4 weeks.

6. When the order is ready, we will ship out and send you the shipping details for tracking.

Please contact sales04@shareway-tech.com freely for any further information.
