ST601A =601A 2060uH 1:0.1 Pulse Transformer, PN# 601A 17.5 ET Constant for digital and data processing transformer

Features of ST601A =601A 2060uH 1:0.1 Pulse Transformer

• Ferrite Cored transformer, with fully encapsulated in a high grade black molded case with UL94V-O Rating.
• Suitable for digital and data processing, line coupling, matching, isolation.
• Working voltage rating maximum of 500V DC
• ET up to 50V uS
• Cost-Effective Reinforced Transformer

Product details of ST601A =601A, 2060uH 1:0.1 Pulse Transformer:

Real Product Photo of ST601A =601A, 2060uH 1:0.1 Pulse Transformer:

Mechanical Dimensions of ST601A =601A, 2060uH 1:0.1 Pulse Transformer:

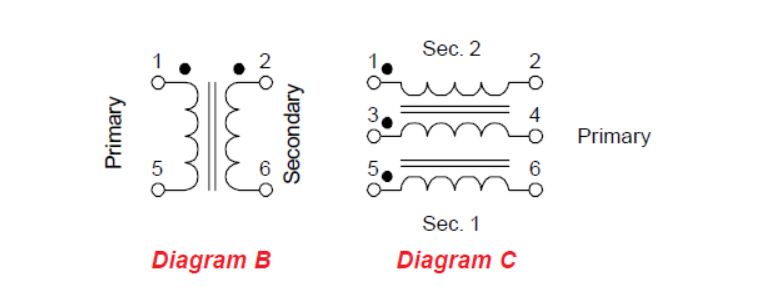

Schematics of ST601A =601A, 2060uH 1:0.1 Pulse Transformer:

Related Products:



Isolation Transformer:
https://www.smpsflybacktransformer.com/sale-13941765-epc3117s-1-lf-push-pull-low-power-transformer-designed-for-use-with-maxim-845-ic.html

Single Phase Audio Amplifier Transformer:
https://www.smpsflybacktransformer.com/sale-10176547-single-phase-audio-amplifier-transformer-ce-rohs-approved.html

RF Wideband transformer:
https://www.smpsflybacktransformer.com/sale-10566011-pwb-1-al-300v-1-4watt-smps-flyback-transformer-surface-mount-wideband-rf-transformers.html

Push-Pull transformer used with Texas Instruments TIDA-00951 REV E2
https://www.smpsflybacktransformer.com/quality-11176814-st3439nl-is-a-pin-to-pin-alternative-to-750343341-mid-ppti-push-pull-transformer-process-control-for
