common mode choke coil For General Signal Line ZJYS Series ZJYS51
Type
Features of the ZJYS and ZJYS51 type, toroidal common mode choke
- A common mode filter for distortion-free noise removal from
transmitted signals. Optimized for transmission of high quality
signals. - Best filter for countering the common mode noise resulting from
data signal processing by PCs, phone equipment, etc. - SMD-type designed for surface mounting.
- Due to a maximum current tolerance of 5A, can also be used to
counter power line noise.
Applications of the ZJYS and ZJYS51 type, toroidal common mode
choke
- Personal computers, telephones,
- LANs, ISDNs, digital PBXs,
- electronic games, CTVs, CD-ROM drives,
- 8mm video equipment,
- other electronic devices.
Characteristics and ordering codes
| Trader PN# | Our PN# | Rated Voltage Edc(V) | Rated Current | DCR (ohm) | Impedance (ohm) | Insulation Resistance (MΩ) |
| ZJYS51R5-2P(T)-01 | SCMC5101 | 50 | 2 | 0.06 Max | 200 Min | 100 Min |
| ZJYS51R5-2PB(T)-01 | SCMC5102 | 50 | 2 | 0.06 max | 200 Min | 100 Min |
| ZJYS51R5-2PL(T)-01 | SCMC5103 | 50 | 2 | 0.06 max | 200 Min | 100 Min |
| ZJYS5103-2PL(T)-01 | SCMC5104 | 50 | 3 | 0.03 max | 100 Min | 100 Min |
| ZJYS51R5-M4PA(T)-01 | SCMC5105 | 50 | 0.5 | 0.2 max | 200 Min | 100 Min |
| ZJYS5105-2PL(T)-01 | SCMC5106 | 50 | 5 | 0.01 max | 100 Min | 100 Min
|
Shape and Dimensions:

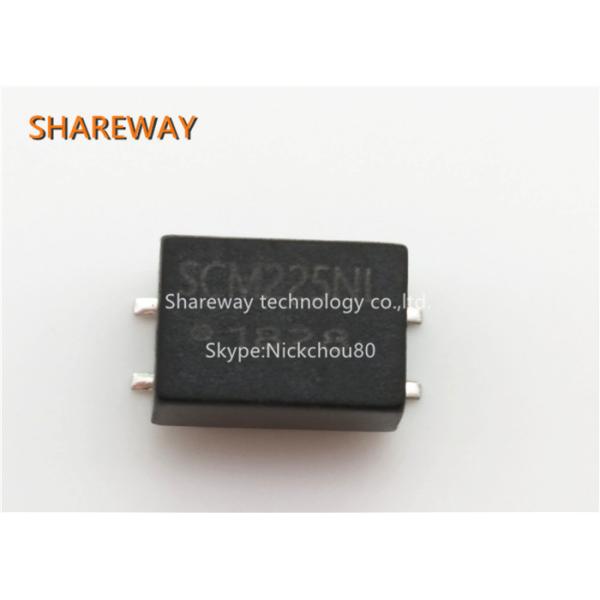

Product picture:
Why us?
Working with worldwide TOP brand customers including Honeywell,
Jabil, NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).
Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.
Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch
NorthBound Networks.
NorthBound Networks is the OEM for this project.
Order Show :
Application Show :
