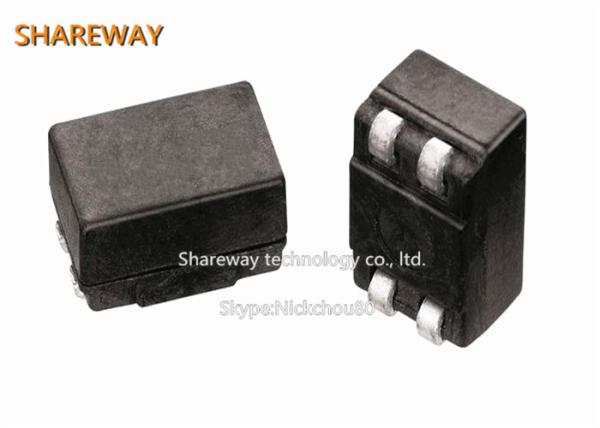

SMD Power High Frequency Choke Automobile Signal Line Application

Ask Lasest Price
Brand Name :	Shareway
Model Number :	LPT4545ER101LP
Certification :	CE UL RoHS ISO9001:2008
Price :	Supportive
Payment Terms :	TT,Paypal
Supply Ability :	3000K.PCS/Month
Delivery Time :	Stock or 3 weeks

Add to Cart

Product Details
Company Profile

SMD Power High Frequency Choke Automobile Signal Line Application

SMD Power Common Mode Choke for automobile signal line

Description:

Common mode inductors use ferrite cores and are double-wire wound. Low differential mode noise signals suppress interference sources and are difficult to deform in high speed signals. Excellent noise suppression, high common mode noise suppression and low differential mode noise signal suppression.

Common mode filter designs are relatively simple, including common mode capacitors, baluns or common mode inductors. The common-mode capacitor bypasses the common-mode currents of the two input lines to ground. The common-mode inductor exhibits a balanced impedance. That is, the impedances of the power line and the ground line are equal. This impedance exhibits the impedance characteristic to the common-mode noise.

Application:

Common mode inductors are used to suppress EMI noise in electronic equipment. DVC, STB IEEE 1394 line. LCD panel, low voltage differential signal. USB cable for personal computers and peripherals

E General information:
It is recommended that the temperature of the part does not exceed 125°C
under worst case operating conditions.
• Ambient temperature: -40°C to +85°C (refering to IR)
• Operating temperature: -40°C to +125°C
• Storage temperature (on tape & reel): -20°C to +40°C; 75% RH max.
• Test conditions of Electrical Properties: 20°C, 33% RH
if not specified differently
