Name: Thru Hole Ethernet Lan Transformer Common Mode Chokes For EMI Suppression
Brand: Shareway
Price: 1 USD

Add to Cart

Lan Transformer MOX-LAN-TRFRC Surface mount / Thru-hole and DIP packages available

Description:

10 BASE-T ISLOATION TRANSFORMERS are designed for adaptor cards, hubs, maus and motherboard applications.
Low cost.
Available with common mode chokes for EMI suppression.
Meets IEEE 802.3 10Base-T specifications.
RoHS compliant.
Surface mount, Thru-hole and DIP packages available.

Part Number	Turns Ratio (±5%) Transmit	Turns Ratio (±5%) Receive	Primary Pins	Common Mode Choke	Sine Wave Inductance OCL (μH Min.)	Interwinding Capacitance Cww (pF Max.)	Leakage Inductance LL (μH Max.)	DCR (Ω Max.)	Hipot (Vrms)
MOX-LAN-TRFRC-128	1 CT:1.414CT	1CT:1CT	6-8/1-3		200	15	0.5	0.4	2000
MOX-LAN-TRFRC-356	1 CT:1.414CT	1CT:1CT	6-8/1-3	X	200	12	0.5	0.6	2000
MOX-LAN-TRFRC-467	1 CT:2CT	1CT:1CT	6-8/1-3	X	140	12	0.2	0.6	2000
MOX-LAN-TRFRC-2023	1 CT: 2.5CT	1CT:1CT	6-8/1-3	X	200	15	0.5	0.4	2000
MOX-LAN-TRFRC-4001	1 CT:2CT	1CT:1CT	6-8/1-3	X	112	8	0.3	0.8	2000
MOX-LAN-TRFRC-2024¹	1 CT: 2.5CT	1CT:1CT	6-8/1-3	X	350	30	0.8	0.6	2000
MOX-LAN-TRFRC-85454	1:1.414	1:1	3-4/1-2		140	12	0.2	0.4	2000
MOX-LAN-TRFRC-85726	1CT:1CT	1CT:1CT	1-3/6-8		200	10	0.2	0.3	2000
MOX-LAN-TRFRC-85745	1CT: 1.414CT	1CT:1CT	6-8/1-3		140	12	0.2	0.3	1500
MOX-LAN-TRFRC-88023	1CT:2CT	1CT:1CT	1-3/6-8	X	200	12	0.3	1.0	1500
MOX-LAN-TRFRC-88041	1CT:2CT	1CT:1CT	6-8/1-3		112	8	0.3	0.5	1500
MOX-LAN-TRFRC-88048	1CT: 1.414CT	1CT:1CT	6-8/1-3	X	110	15	0.4	1.0	1500
MOX-LAN-TRFRC-88052	2CT:1CT	1CT:1CT	1-3/6-8	X	140	12	0.3	1.0	1500
MOX-LAN-TRFRC-88810	—	1:1 (4X)	1-2/3-4		140	12	0.2	0.4	2000
MOX-LAN-TRFRC-88820	1:1.414 (4X)	—	1-2/3-4 5-6/7-8		140	12	0.2	0.4	2000

Lan Transformer MOX-LAN-TRFRC Surface mount / Thru-hole and DIP packages available

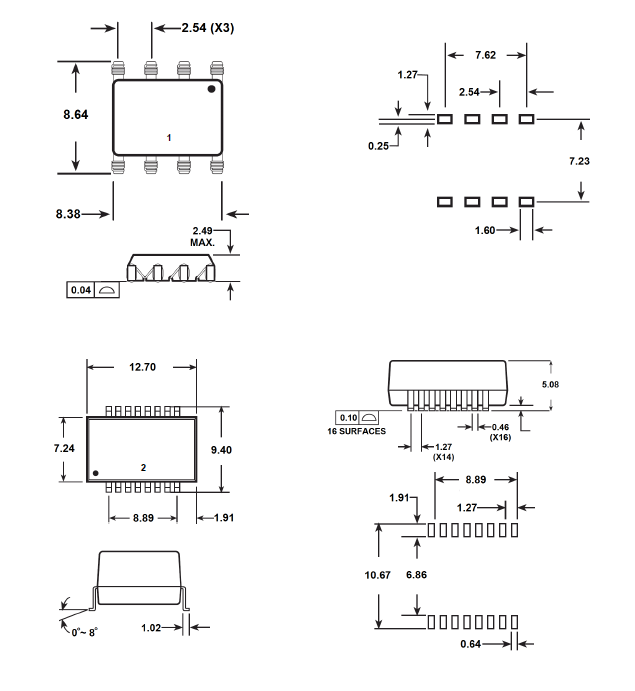

Dimensions:
