AC Line FIlter Small Signal Transformer Multi Winding EP-919SG For Radio

Ask Lasest Price
Brand Name :	Shareway
Model Number :	EP-919SG
Certification :	CE UL RoHS ISO9001:2008
Price :	Supportive
Payment Terms :	TT,Paypal
Supply Ability :	3000K.PCS/Month
Delivery Time :	Stock or 3 weeks

Add to Cart

Product Details
Company Profile

AC Line FIlter Small Signal Transformer Multi Winding EP-919SG For Radio

EP-919SG Ac Line FIlter Small Signal Transformer For Radio

D Electrical Properties:

Properties	Test conditions		Value	Unit	Tol.
Inductance	100 kHz/ 100 mV	L	400	μH	±10%
Turns ratio		n	1:0.25:0.14:0.14:0.14		±3%
Saturation current	\|ΔL/L\| < 20%	Isat	0.3	A	typ.
DC Resistance 1	@ 20°C	RDC1	1.1	Ω	max.
DC Resistance 2	@ 20°C	RDC2	0.8	Ω	max.
DC Resistance 3	@ 20°C	RDC3	98.0	mΩ	max.
DC Resistance 4	@ 20°C	RDC4	98.0	mΩ	max.
DC Resistance 5	@ 20°C	RDC5	98.0	mΩ	max.
Leakage inductance	100 kHz/ 100 mV	LS	4.0	μH	max.
Insulation test voltage	N1,2 => N3,4,5	UT	1500	V (AC)

E General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.

Storage Temperature: -20°C to 60°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

D2 Application Properties:

Properties		Value	Unit
Input voltage	Ui	36-57	V (DC)
Output voltage 1 (N3)	UO1	5.0	V
Output current 1 (N3)	IO1	0.27	A
Output voltage 2 (N4)	UO2	5.0	V
Output current 2 (N4)	IO2	0.27	A
Output voltage 3 (N5)	UO3	5.0	V
Output current 3 (N5)	IO3	0.27	A
Auxiliary voltage (N2)	Uaux	9	V
Switching frequency	fswitch	200-500	kHz

Product Picture:

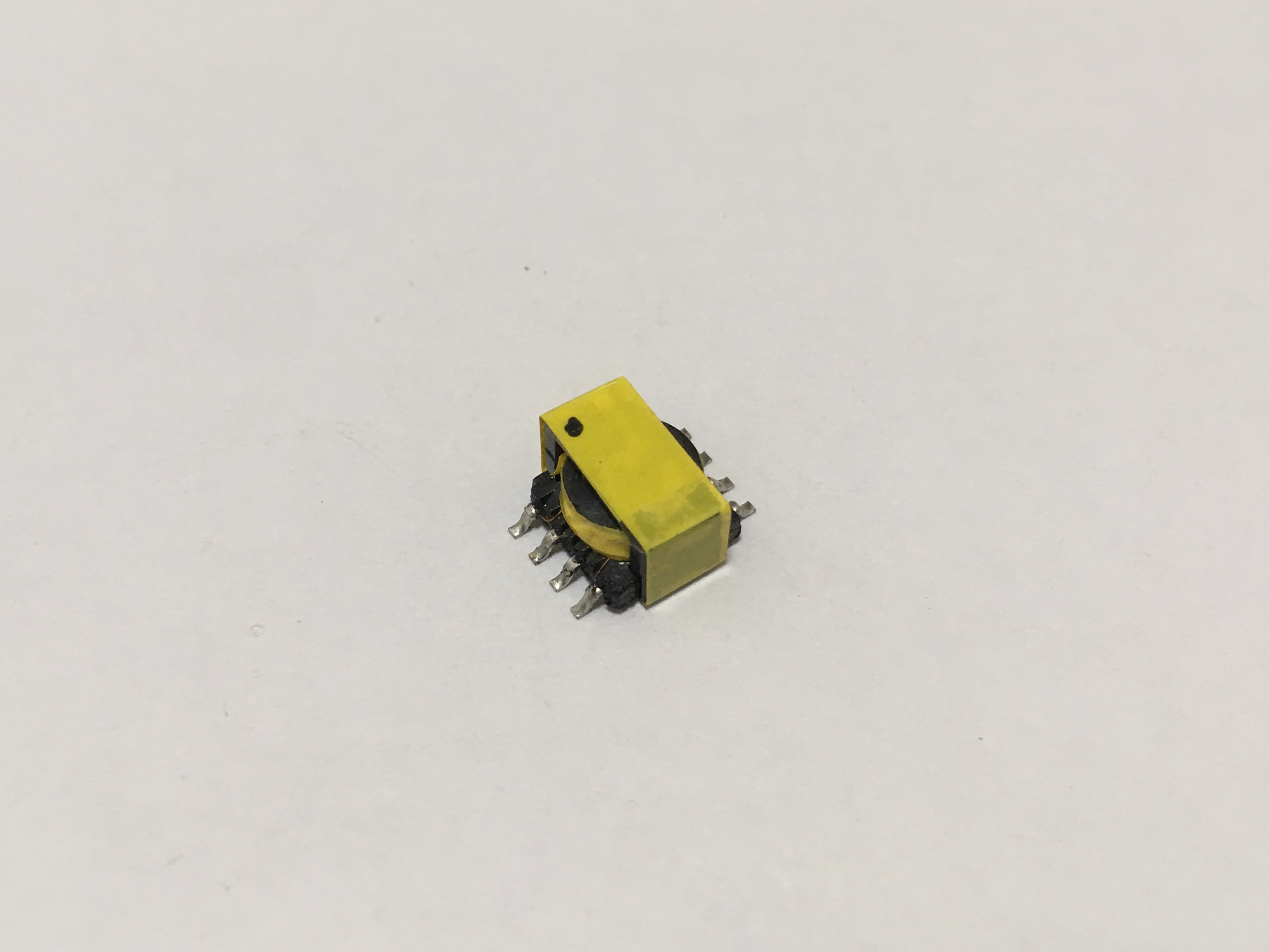

749119150 Ac Line FIlter Small Signal Transformer For Radio
