ST6853NL 1:4 Surface Mount Transformer For TI SN6501 Gate Drive
Application
Description:
1.Designed to use withTI SN6501-A , SN6501-B ,SN6505A ,SN6505B
interface ICs .
2.Suitable for gate drive and other power applications , suitable
for SN650X series for providing power to the isolated side of the
interface .
3. 5 KVrms 60 Seconds Isolation between windings in a miniature
surface mount package
4. Each transformer have a plastic housing cover or stainless steel
cover , which can provide excellent surface for automated placement
.
5. minimum Vs rating of 9Vus, , creepage and clearance distance of 8mm
minimum between primary and secondary.
Part number | Leakage Inductance | Inductance min (μH) | Volt-time product typ (Vμsec) | DCR max (Ohms) | Isolation pri-sec (Vrms) | Output Current Rating | Pri : sec Turns ratio | Power (W) |
| pri | sec |
| ST6853NL | 400nH Max | 200 (1-3) | 9 (1-3) | 0.275 (1-3) | 1.350 (6-4) | 5000 | 165mA DC | 1 CT : 4 CT | 0.25 |
1. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc
2. Leakage inductance measured at 100 kHz, 0.1 Vrms with secondary
pins shorted.
3. SRF measured with coils connected in series using an Agilent/HP
4192 or equivalent.
4. Operating temperature range −40°C to +125°C.
5. Electrical specifications at 25°C.
Shape and Dimensions:

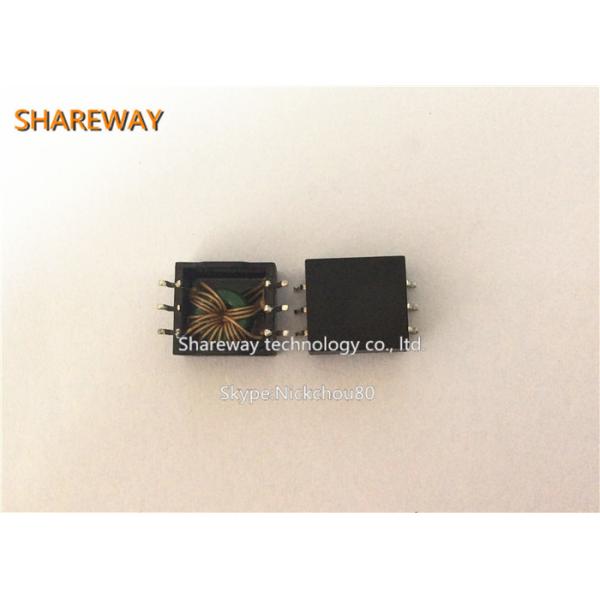

Product Picture:
