Flat wire windings High Current Power Inductor for high current
power supplies HA3588-BL
Characteristics
- Flat wire windings provide extremely low DC and AC resistance.
- Low loss ferrite cores provide flat L vs I
- Magnetic shielding to minimize EMI
- Vertical (TH) mounting for rugged board attachment
- Designed for high current power supplies
Electrical Properties:
| Part number | Inductance1 ±10% (µH) |
DCR max2 (mOhms)
| SRF typ3 (MHz) |
Isat (A)4 10% drop
| Isat (A)4 20% drop |
Isat (A)4 30% drop
|
Irms (A)5 20°C rise
| Irms (A)5 40°C rise |
| HA3588-BL | 10.0 | 2.6 | 17 | 30 | 34 | 37 | 19 | 26 |
Shape and Dimensions:

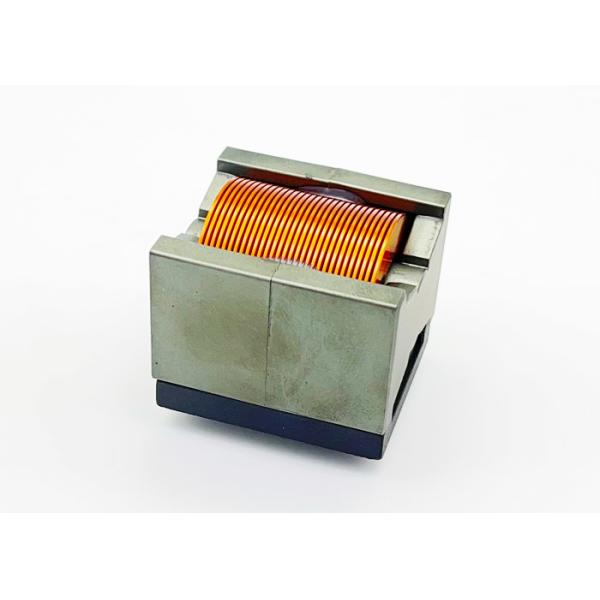

Product picture:
Flat wire windings High Current Power Inductor for high current
power supplies HA3588-BL
