    Single Port Ethernet Isolation Transformer TGR04-6506V6LF

    Ask Lasest Price
    Brand Name : Shareway
    Model Number : TGR04-6506V6LF
    Certification : RoHs, Reach, UL
    Price : USD$0.20 to USD$0.95
    Payment Terms : T/T
    Supply Ability : 1000,000 piece per month
    Delivery Time : onw week for sample, 4 weeks for mass order
    • Product Details
    • Company Profile

    Single Port Ethernet Isolation Transformer TGR04-6506V6LF

    Shareway SMD Isolation LAN Transformer compatible TO automotive VERSION part TGR04-6506V6LF


    ELECTRICAL SPECIFICATIONS @25°C​:

    TURNS RATIO
    P1-3:P6-41CT: 1CT ±2%
    OCL P1-3(-40/+125°C)150pH min
    DCR P1-30.8Ω max
    Cw/w25pF max
    LL P1-30.6uH max
    ISOLATION3,000Vrms


    echanical Diagram:

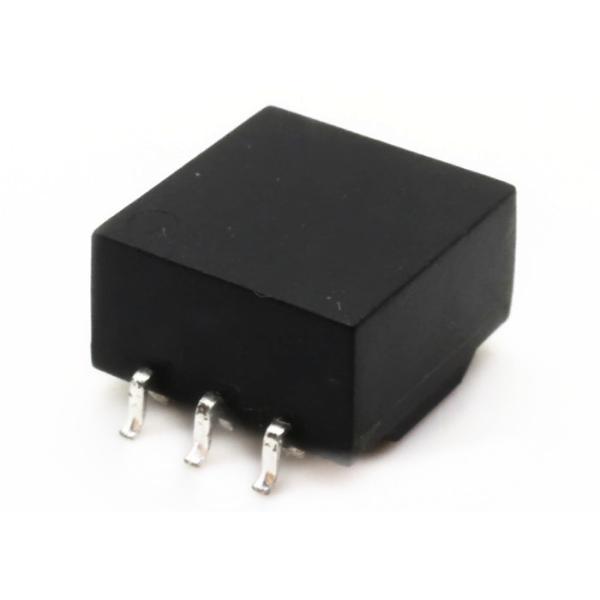

    Product Photo:

    Single Port Ethernet Isolation Transformer TGR04-6506V6LFSingle Port Ethernet Isolation Transformer TGR04-6506V6LF


    How to place the order to us:

    1. Please send your demand datasheet to us.

    2. We will provide drop in alternative and price for refer.

    3. If price ok, then we will send you some free sample for testing.

    4. After testing, you can place the mass order and process the payment.

    5. The lead time for mass order usually is about 1-4 weeks.

    6. When the order is ready, we will ship out and send you the shipping details for tracking.


    Please contact sales03@shareway-tech.com freely for any further information.
